Cable Management Systems

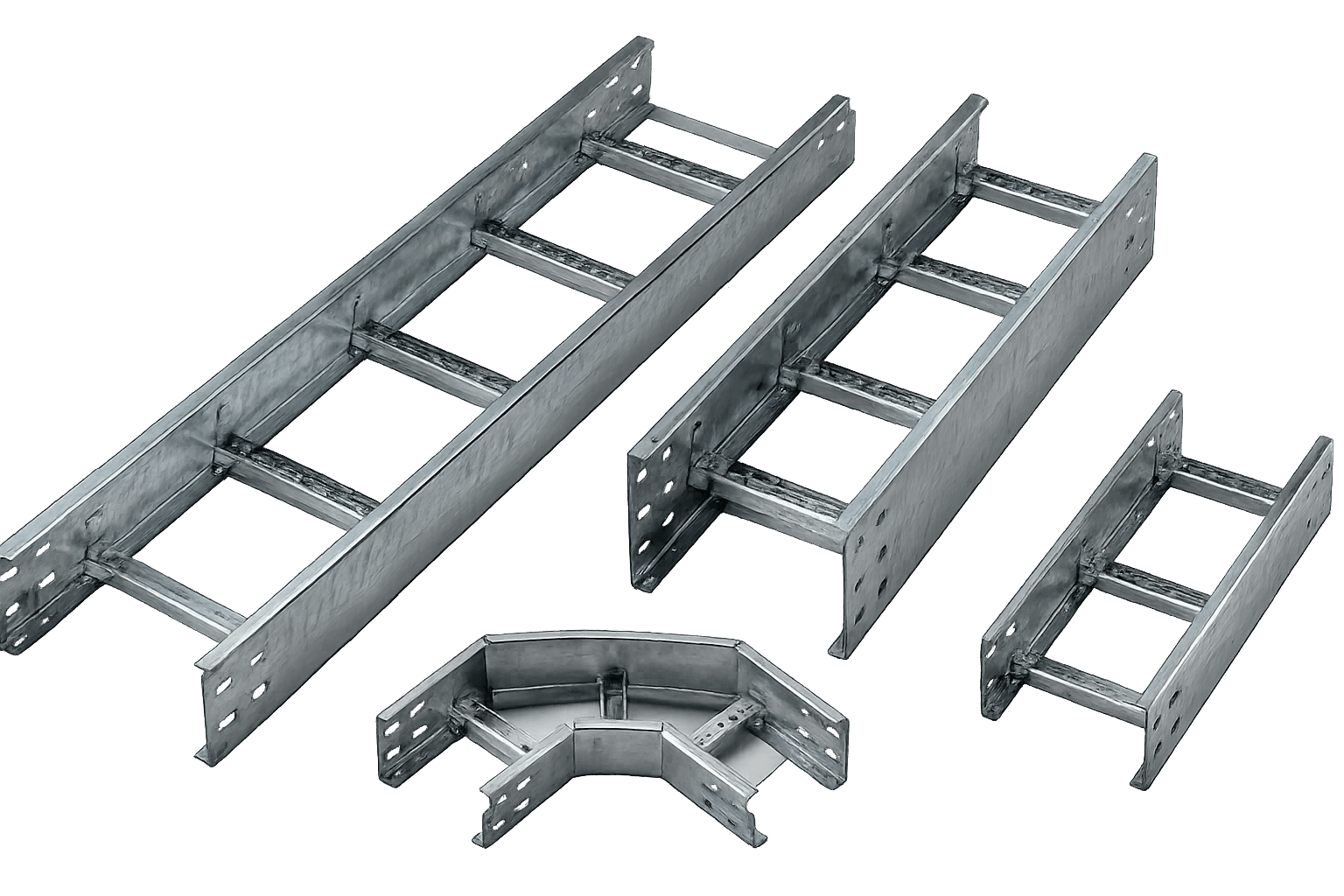

Cable Ladders

High-capacity ladder systems and directional accessories for demanding industrial cable installations.

Applicable Standards

BS EN 61537IEC 61537

Materials & Finishes

Hot-Dip GalvanizedPregalvanizedCorten-AAluminiumStainless Steel

System Scope

C-Profile RungHeavy DutyConcave-Convex (GCMC)GMIE Type

Engineering Support

Load & Support DataTechnical DrawingsCustom DimensionsInstallation Guidance

Product Series in This System

Four catalogue series make up the Cable Ladders range — rung, heavy-duty, concave-convex and GMIE-type ladders with their directional accessories.

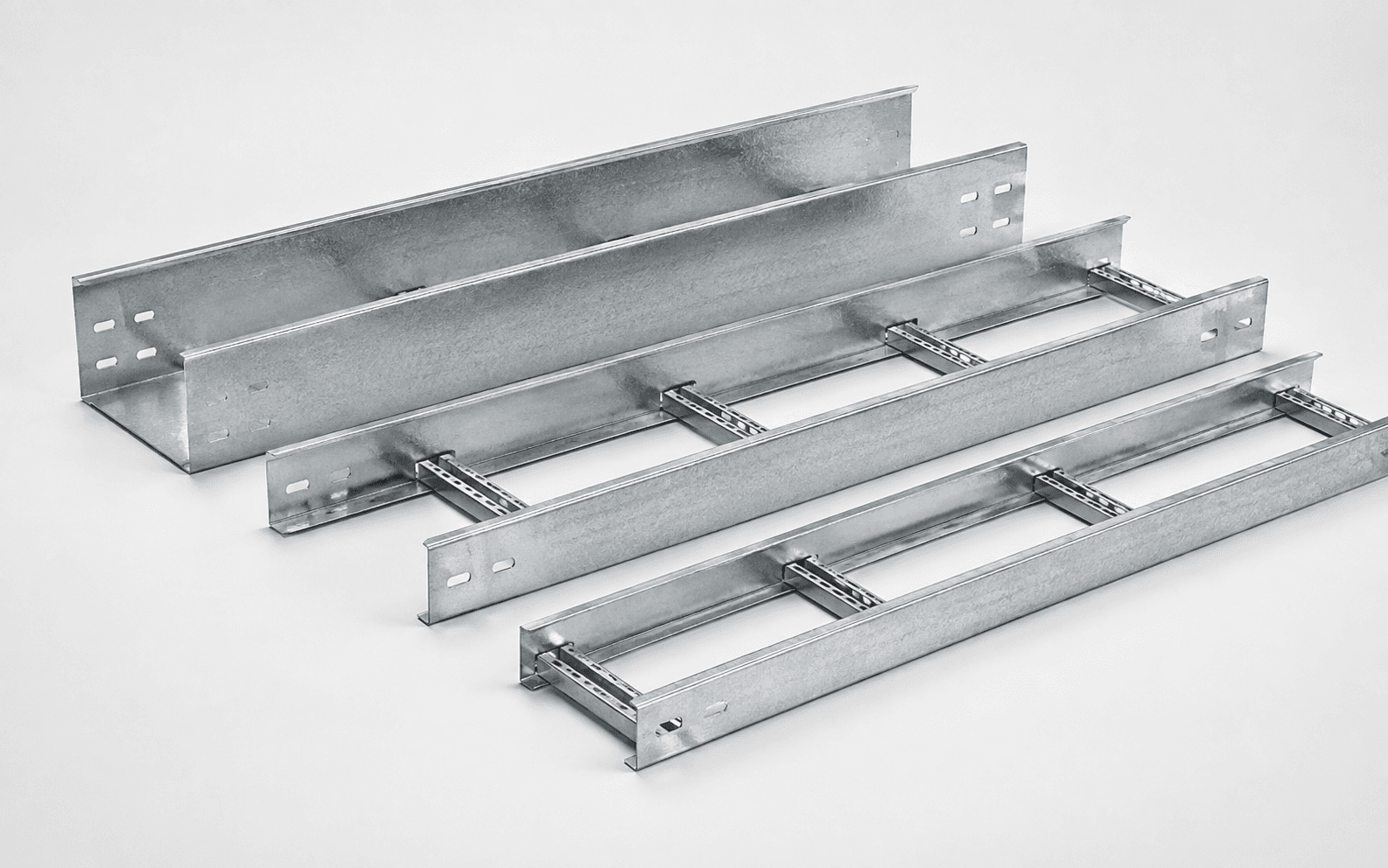

C-profile rung ladder system with a full range of directional accessories.

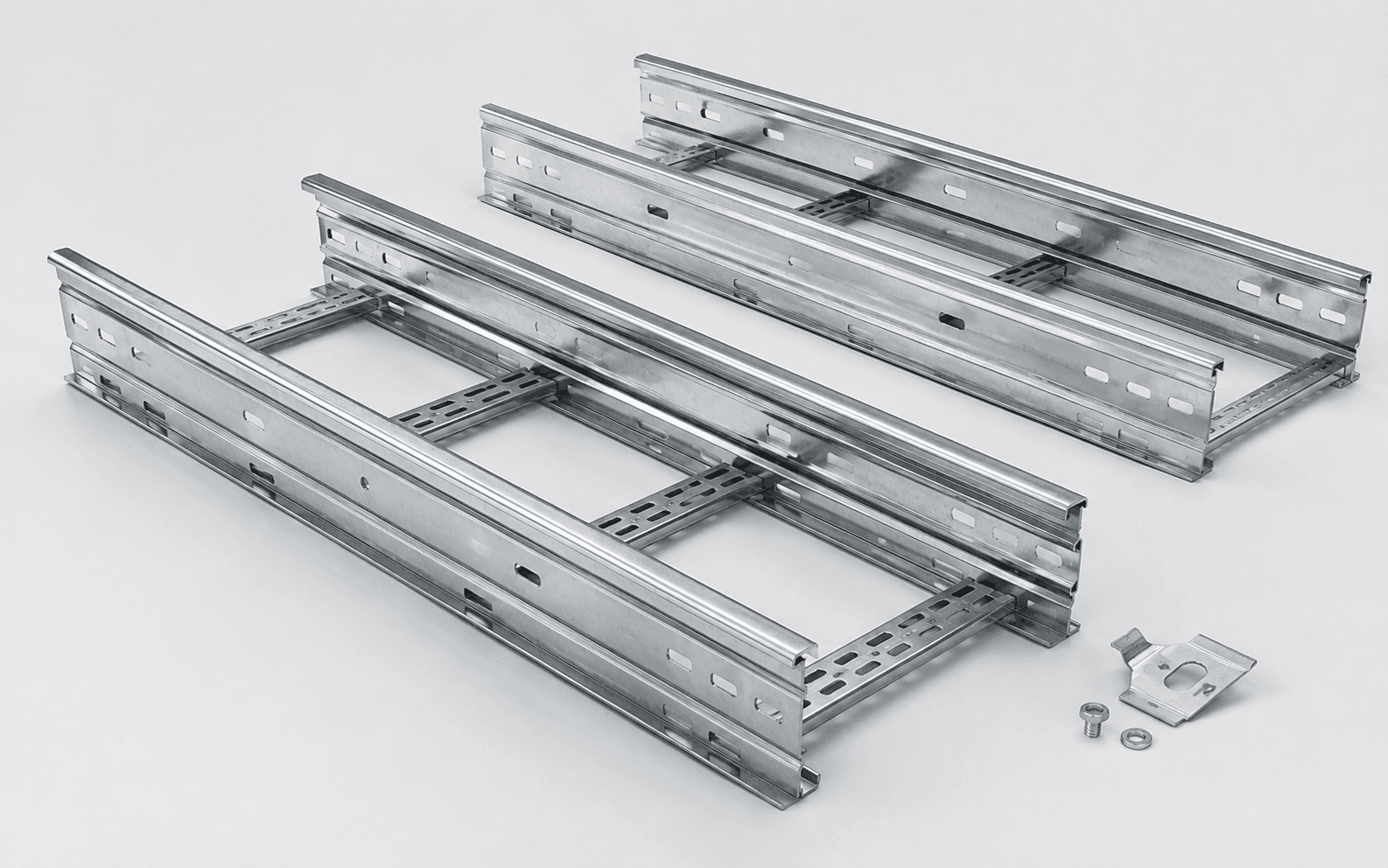

Heavy-duty ladder construction for demanding industrial cable loads.

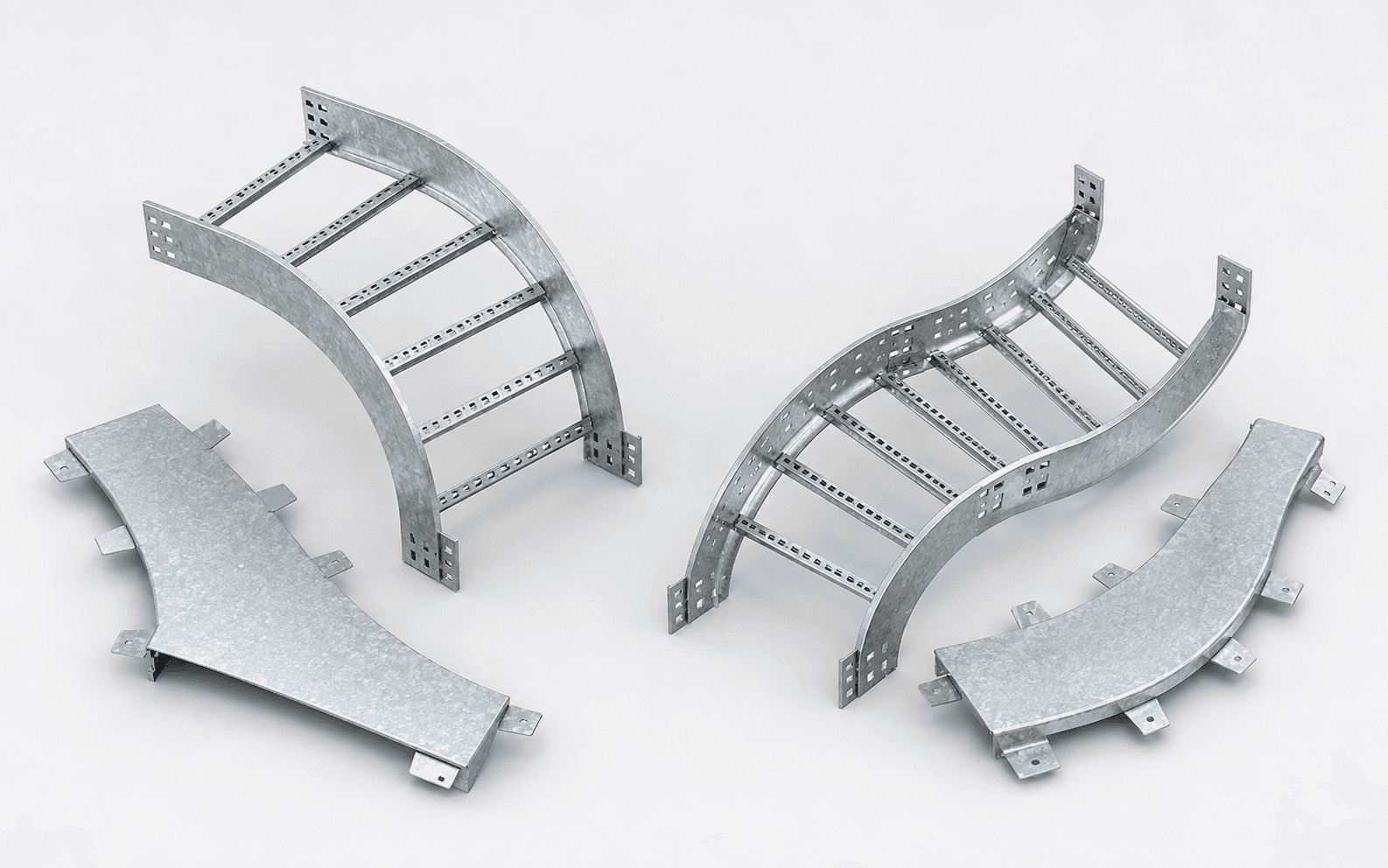

Concave and convex ladder sections with matching covers for level changes.

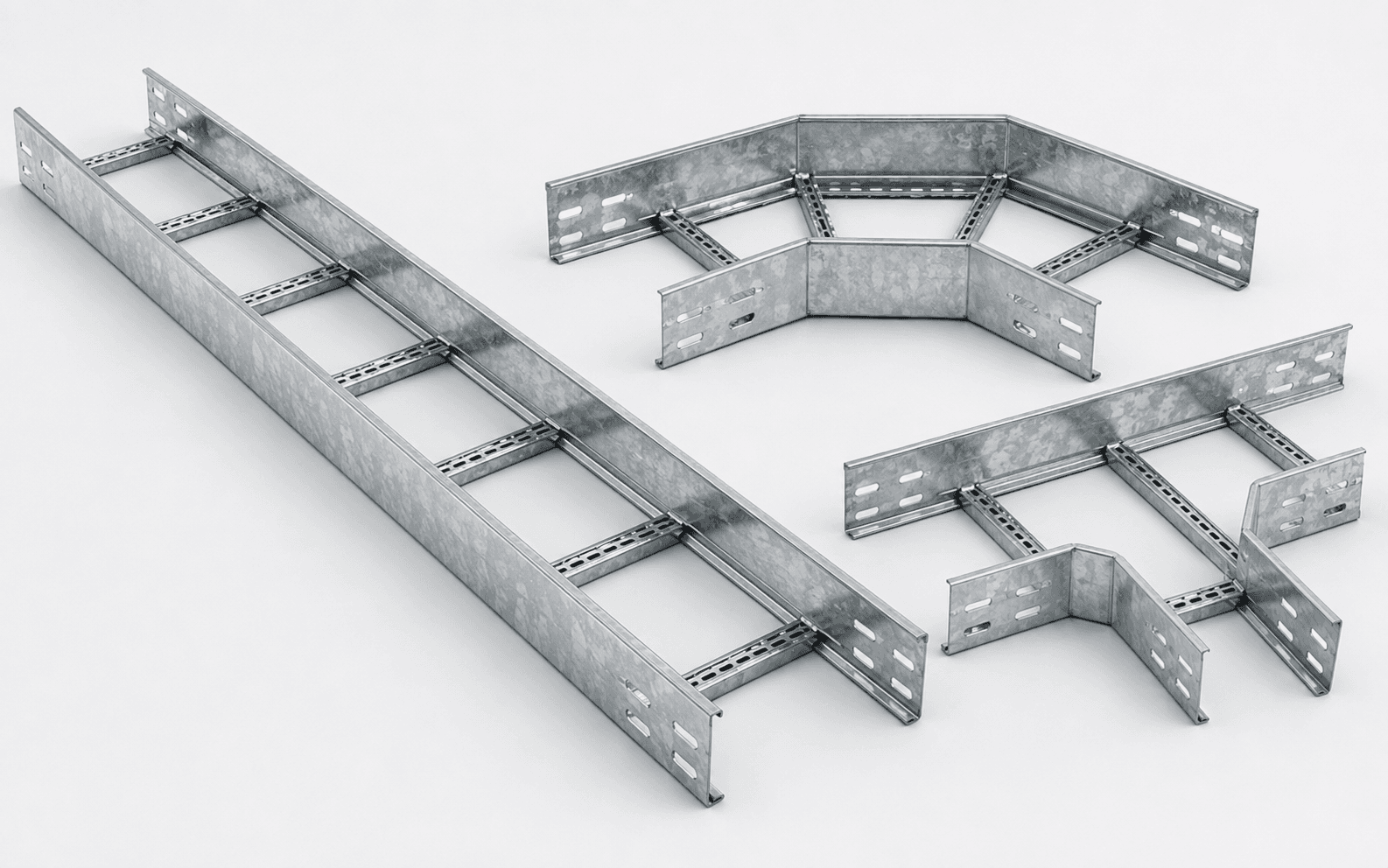

GMIE-type ladder system with its accessory range.

Cable ladders are carried and fixed by these support systems, and route alongside these other containment types.

Support profiles, brackets, consoles and threaded rods that carry these ladders.

Perforated, heavy-duty and trunking systems for lighter cable routing.

Lightweight ventilated wire-mesh containment for flexible cable routing.

Get technical support with ladder sizing, load ratings, materials, finishes and project-specific configurations.
