Cable Management Systems
Open wire-mesh cable-tray systems for ventilated, lightweight and flexible cable routing, available in multiple tray heights and widths with matching jointing and support accessories.

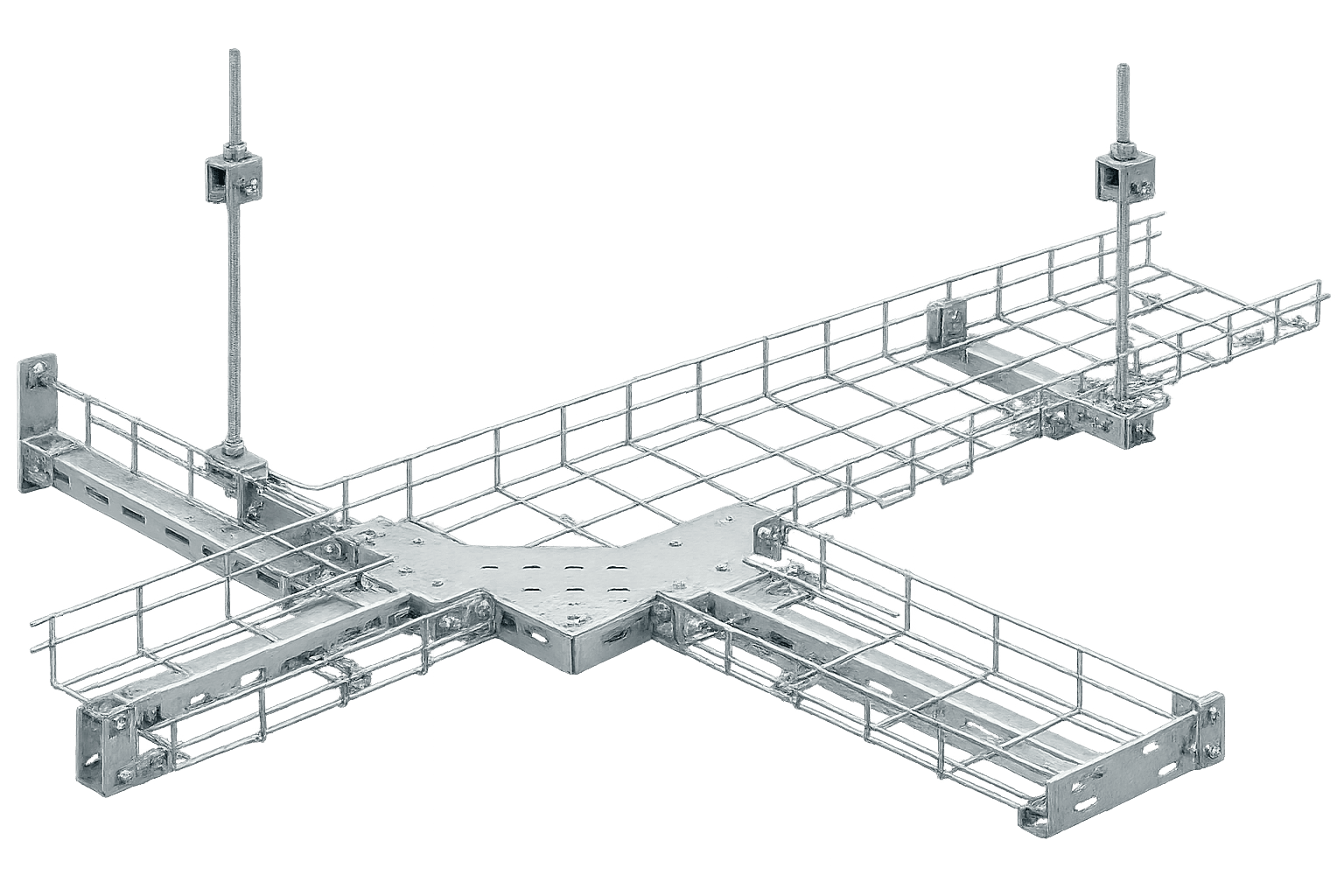

The schedule combines 24 wire-mesh tray variants, three jointing pieces and six GTKD support consoles drawn from the Gersan Cable Support catalogue. Tray weights are shown in kg/m and jointing-piece weights in kg/unit. Catalogue configuration examples include 90° bends, tee connections and reducers without separate unsupported order codes.
| Family | Model | Order Code | Width / A (mm) | Height (mm) | Wire / e / Thickness (mm) | Material / Finish | Type | Action |
|---|---|---|---|---|---|---|---|---|
| TTK | TTK-10 DStandard Wire-Mesh Cable Tray | 1001010049140 | 104 | 55 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK | TTK-20 DStandard Wire-Mesh Cable Tray | 1001020049140 | 204 | 55 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK | TTK-30 DStandard Wire-Mesh Cable Tray | 1001030049140 | 304 | 55 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK | TTK-40 DStandard Wire-Mesh Cable Tray | 1001040049140 | 404 | 55 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK | TTK-50 DStandard Wire-Mesh Cable Tray | 1001050049140 | 504 | 55 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK | TTK-60 DStandard Wire-Mesh Cable Tray | 1001060049140 | 604 | 55 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-A | TTK-A10 DMedium-Depth Wire-Mesh Cable Tray | 1001a10049140 | 104 | 60 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-A | TTK-A20 DMedium-Depth Wire-Mesh Cable Tray | 1001a20049140 | 204 | 60 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-A | TTK-A30 DMedium-Depth Wire-Mesh Cable Tray | 1001a30049140 | 304 | 60 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-A | TTK-A40 DMedium-Depth Wire-Mesh Cable Tray | 1001a40049140 | 404 | 60 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-A | TTK-A50 DMedium-Depth Wire-Mesh Cable Tray | 1001a50049140 | 504 | 60 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-A | TTK-A60 DMedium-Depth Wire-Mesh Cable Tray | 1001a60049140 | 604 | 60 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-B | TTK-B10 DDeep Wire-Mesh Cable Tray | 1001b10049140 | 104 | 88 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-B | TTK-B20 DDeep Wire-Mesh Cable Tray | 1001b20049140 | 204 | 88 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-B | TTK-B30 DDeep Wire-Mesh Cable Tray | 1001b30049140 | 304 | 88 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-B | TTK-B40 DDeep Wire-Mesh Cable Tray | 1001b40049140 | 404 | 88 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-B | TTK-B50 DDeep Wire-Mesh Cable Tray | 1001b50049140 | 504 | 88 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-B | TTK-B60 DDeep Wire-Mesh Cable Tray | 1001b60049140 | 604 | 88 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-C | TTK-C20 DHigh-Side Wire-Mesh Cable Tray | 1001C20049140 | 204 | 120 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-C | TTK-C30 DHigh-Side Wire-Mesh Cable Tray | 1001C30049140 | 304 | 120 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-C | TTK-C40 DHigh-Side Wire-Mesh Cable Tray | 1001C40049140 | 404 | 120 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-C | TTK-C50 DHigh-Side Wire-Mesh Cable Tray | 1001C50049140 | 504 | 120 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-C | TTK-C60 DHigh-Side Wire-Mesh Cable Tray | 1001C60049140 | 604 | 120 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| TTK-L | TTK-L DNarrow Wire-Mesh Cable Tray | 1002000149140 | 85 | 55 | 4 | Hot-Dip Galvanised Steel / Wire | Tray | |
| — | TTK-MP DWire-Mesh Jointing Piece | 1002000229141 | — | — | — | Hot-Dip Galvanised Steel | Jointing Piece | |
| — | TTK-P DWire-Mesh Jointing Piece | 1002000329141 | — | — | — | Hot-Dip Galvanised Steel | Jointing Piece | |
| — | TTK-LP DWire-Mesh Jointing Piece | 1002000459141 | — | — | — | Hot-Dip Galvanised Steel | Jointing Piece | |
| — | GTKD-10 DWire Cable Duct Support Console | 0302T0109140 | — | — | 1.5 | Hot-Dip Galvanised Steel | Support Console | |
| — | GTKD-20 DWire Cable Duct Support Console | 0302T0209140 | — | — | 1.5 | Hot-Dip Galvanised Steel | Support Console | |
| — | GTKD-30 DWire Cable Duct Support Console | 0302T0309140 | — | — | 1.5 | Hot-Dip Galvanised Steel | Support Console | |
| — | GTKD-40 DWire Cable Duct Support Console | 0302T0409140 | — | — | 2 | Hot-Dip Galvanised Steel | Support Console | |
| — | GTKD-50 DWire Cable Duct Support Console | 0302T0509140 | — | — | 2 | Hot-Dip Galvanised Steel | Support Console | |
| — | GTKD-60 DWire Cable Duct Support Console | 0302T0609140 | — | — | 2 | Hot-Dip Galvanised Steel | Support Console |
Our technical team can support product selection, load requirements, installation coordination and project-specific configurations.
