Cable Management Systems

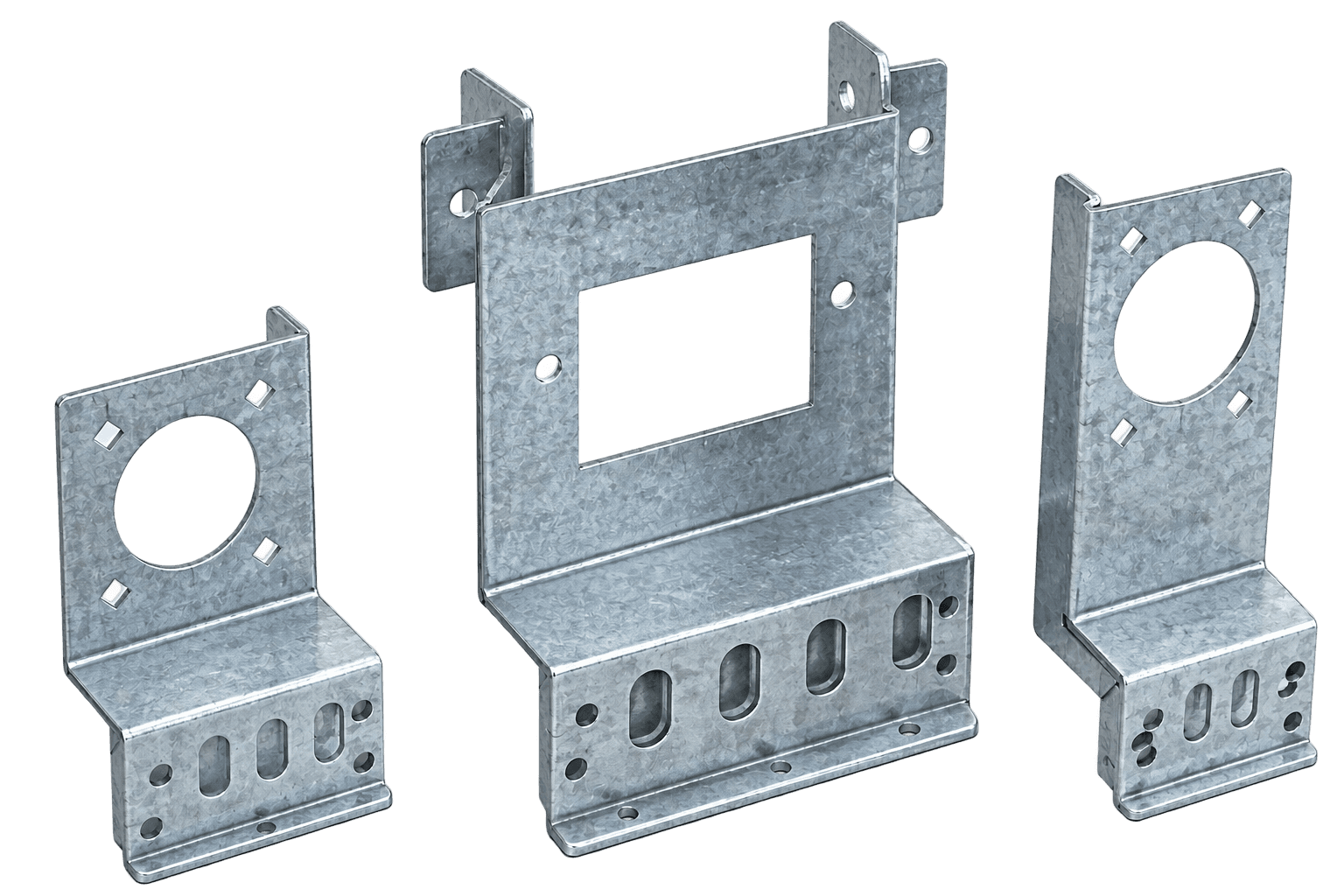

Pipe-system fixing units, socket plates, circuit breaker plates and pipe accessories for mounting sockets and fuses directly on the cable tray.
Every model, stock code, dimension and weight below is drawn directly from the Gersan Cable Support catalogue.
| Model | Stock Code | Width (mm) | Height (mm) | Thickness (mm) | Material / Finish | Action |
|---|---|---|---|---|---|---|
| GPP-01 DSocket Plate | 0501000119140 | — | — | — | Hot-Dip Galvanized Steel | |
| GPP-02 DSocket Plate | 0501000219140 | — | — | — | Hot-Dip Galvanized Steel | |
| GPP-05 DSocket Plate | 0501000519140 | — | — | — | Hot-Dip Galvanized Steel | |
| GPP-06 DSocket Plate | 0501000619140 | — | — | — | Hot-Dip Galvanized Steel | |
| GPP-03 DSinglephase and Threephase Circuit Breaker | 0501000319141 | — | — | — | Hot-Dip Galvanized Steel | |
| GPP-04 DSinglephase and Threephase Circuit Breaker | 0501000419141 | — | — | — | Hot-Dip Galvanized Steel | |
| GBT-40 DTray Fixing Piece | 0601004029140 | — | — | — | Hot-Dip Galvanized Steel | |
| GBT-50 DTray Fixing Piece | 0601005029140 | — | — | — | Hot-Dip Galvanized Steel | |
| GBT-60 DTray Fixing Piece | 0601006029140 | — | — | — | Hot-Dip Galvanized Steel | |
| GBT-100 DTray Fixing Piece | 0601010029140 | — | — | — | Hot-Dip Galvanized Steel | |
| GBD-250 DPipe Elbow | 0602025019140 | — | — | — | Hot-Dip Galvanized Steel | |
| GBD-420 DPipe Elbow | 0602042019140 | — | — | — | Hot-Dip Galvanized Steel | |
| GBE-250 DPipe Connection Piece | 0603025019140 | — | — | — | Hot-Dip Galvanized Steel | |
| GBE-420 DPipe Connection Piece | 0603042019140 | — | — | — | Hot-Dip Galvanized Steel | |
| GB-250 DPipe | 0604025019140 | — | — | — | Hot-Dip Galvanized Steel | |
| GB-420 DPipe | 0604042019140 | — | — | — | Hot-Dip Galvanized Steel | |
| BK-250 DPipe Fixing Bracket | 0604B25019140 | — | — | — | Hot-Dip Galvanized Steel | |
| BK-420 DPipe Fixing Bracket | 0604B42029140 | — | — | — | Hot-Dip Galvanized Steel | |
| GBC-250 DMachine Outlet | 0605C25019140 | — | — | — | Hot-Dip Galvanized Steel | |
| GBC-420 DMachine Outlet | 0605C42019140 | — | — | — | Hot-Dip Galvanized Steel | |
| GBY-250 DFloor Fixing | 0605Y25019140 | — | — | — | Hot-Dip Galvanized Steel | |
| GBY-420 DFloor Fixing | 0605C42019140 | — | — | — | Hot-Dip Galvanized Steel |
