Cable Management Systems

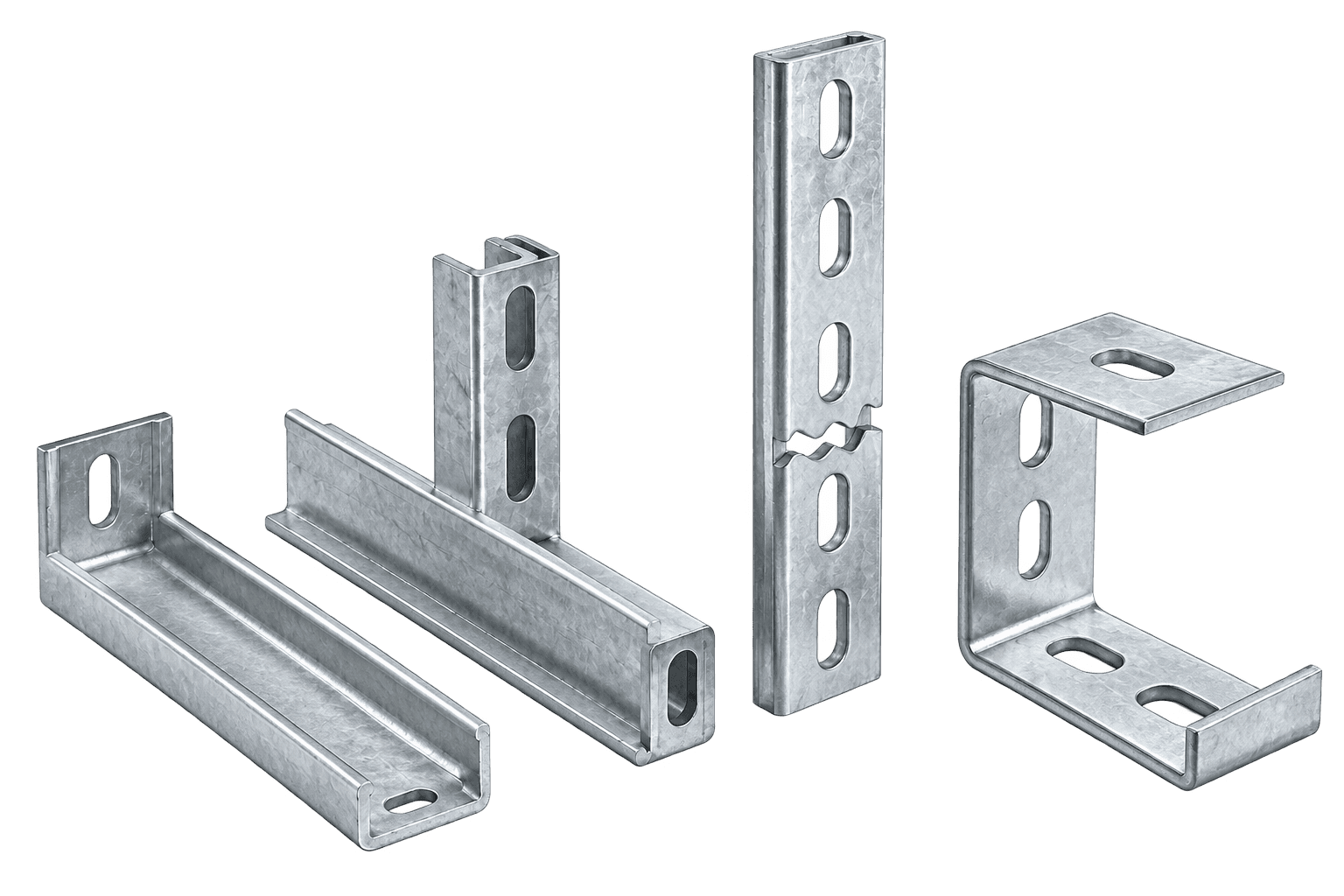

Hanger profiles, brackets and fixing elements for cable carriers and ladders.
Every model, stock code, dimension and weight below is drawn directly from the Gersan Cable Support catalogue.
| Model | Stock Code | Width (mm) | Height (mm) | Thickness (mm) | Material / Finish | Action |
|---|---|---|---|---|---|---|
| G9-200 DNPI-80 Support System | 0101020009140 | — | — | — | Steel | |
| G9-300 DNPI-80 Support System | 0101030009140 | — | — | — | Steel | |
| G9-400 DNPI-80 Support System | 0101040009140 | — | — | — | Steel | |
| G9-500 DNPI-80 Support System | 0101050009140 | — | — | — | Steel | |
| G9-600 DNPI-80 Support System | 0101060009140 | — | — | — | Steel | |
| G9-700 DNPI-80 Support System | 0101070009140 | — | — | — | Steel | |
| G9-800 DNPI-80 Support System | 0101080009140 | — | — | — | Steel | |
| G9-900 DNPI-80 Support System | 0101090009140 | — | — | — | Steel | |
| G9-1000 DNPI-80 Support System | 010110009140 | — | — | — | Steel | |
| G9-2000 DNPI-80 Support System | 010120009140 | — | — | — | Steel | |
| G9-3000 DNPI-80 Support System | 010130009140 | — | — | — | Steel | |
| G9-6000 DNPI-80 Support System | 010160009140 | — | — | — | Steel | |
| G10-200 DNPI-80 Support System | 0102020009140 | — | — | — | Steel | |
| G10-300 DNPI-80 Support System | 0102030009140 | — | — | — | Steel | |
| G10-400 DNPI-80 Support System | 0102040009140 | — | — | — | Steel | |
| G10-500 DNPI-80 Support System | 0102050009140 | — | — | — | Steel | |
| G10-600 DNPI-80 Support System | 0102060009140 | — | — | — | Steel | |
| G10-700 DNPI-80 Support System | 0102070009140 | — | — | — | Steel | |
| G10-800 DNPI-80 Support System | 0102080009140 | — | — | — | Steel | |
| G10-900 DNPI-80 Support System | 0102090009140 | — | — | — | Steel | |
| G10-1000 DNPI-80 Support System | 010210009140 | — | — | — | Steel | |
| G10-2000 DNPI-80 Support System | 010220009140 | — | — | — | Steel | |
| G10-3000 DNPI-80 Support System | 010230009140 | — | — | — | Steel | |
| G10-6000 DNPI-80 Support System | 010260009140 | — | — | — | Steel | |
| G1-6 DNPI-80 Jointing Piece | 1301021549140 | — | — | — | Steel | |
| GP-03 PLSNPI-80 Plastic Cover | 1500100010PLS0 | — | — | — | Steel | |
| GK-110 DGK Bracket | 0303011039141 | 69 | 73 | 3 | Steel | |
| GK-160 DGK Bracket | 0303016039141 | 69 | 73 | 3 | Steel | |
| GK-210 DGK Bracket | 0303021039141 | 69 | 73 | 3 | Steel | |
| GK-260 DGK Bracket | 0303026039141 | 69 | 73 | 3 | Steel | |
| GK-310 DGK Bracket | 0303031039141 | 69 | 73 | 3 | Steel | |
| GK-360 DGK Bracket | 0303036039141 | 69 | 73 | 3 | Steel | |
| GK-410 DGK Bracket | 0303041039141 | 69 | 73 | 3 | Steel | |
| GK-460 DGK Bracket | 0303046039141 | 80 | 83 | 3 | Steel | |
| GK-510 DGK Bracket | 0303051039141 | 80 | 83 | 3 | Steel | |
| GK-560 DGK Bracket | 0303056039141 | 80 | 83 | 3 | Steel | |
| GK-610 DGK Bracket | 0303061039141 | 80 | 83 | 3 | Steel | |
| GI-HP DAdjustable Head Plate For I Support | 0104100259141 | — | — | — | Steel | |
| GI-HP-A DAdjustable Head Plate For I Support | 0104100159141 | — | — | — | Steel | |
| GI-HP-B DAdjustable Head Plate For I Support | 0104100359140 | — | — | — | Steel | |
| GDP-1 DMounting Clamp | 0103100459140 | — | — | 5 | Steel | |
| GDP-2 DMounting Clamp | 0103100459141 | — | — | 5 | Steel | |
| GDP-3 DMounting Clamp | 0103100249141 | — | — | 4 | Steel | |
| GDP-4 DMounting Clamp | 0103100349141 | — | — | 4 | Steel | |
| TK-15 DMounting Clamp | 0105101569141 | 15 | — | 6 | Steel | |
| TK-20 DMounting Clamp | 0105102069141 | 20 | — | 6 | Steel | |
| TK-25 DMounting Clamp | 0105102569141 | 25 | — | 6 | Steel | |
| TK-15A DMounting Clamp | 0106101569141 | 15 | — | 6 | Steel | |
| TK-20A DMounting Clamp | 0106102069141 | 20 | — | 6 | Steel | |
| TK-25A DMounting Clamp | 0106102569141 | 25 | — | 6 | Steel |
Hanger profiles, brackets & fixings
122 order codesProfile & bracket hanging components
76 order codesThreaded-rod tray carriers & hooks
55 order codesProfiles, console brackets & fixing bolts
238 order codesRods, wedge anchors & fixing sets
95 order codesOur technical team can help with sizing, load ratings, installation details and project-specific configurations.
